SWAGED Tube Samples
Sample of small tube 1/16 diameter swaged to .016 ID
Expanded tube with flare
Swaged bullet nose
Long tapers up to 26"
long
maximum 2.500 OD
Swaged tube up to 3.00" OD
Aircraft part with
reduced wall thickness
Sample of furniture
leg
Sample of multiple
swage
Flared and Flattened Tube
Flared Tube
Swaged Coupling with Flared
and Tapered end
Sample of
Swaged Strut with
Threaded End
FRONT VIEW
Sample of
Swaged Strut with
Threaded End
Strut with Bullet
Nose
Both Ends
Piston Rod with Cutaway View

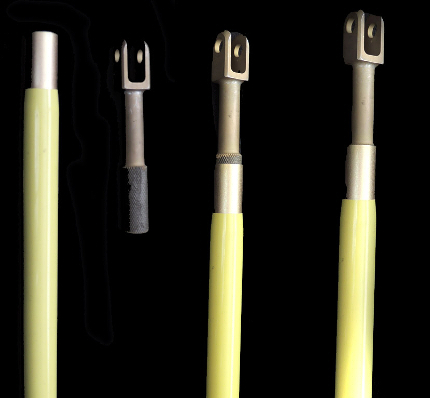

Sample of Sample of Pushrod with Swaged End and Clevis
DISASSEMBLED and ASSEMBLED.

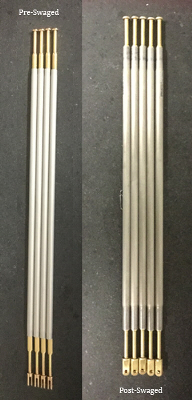

Pre and Post Swaged Rods
